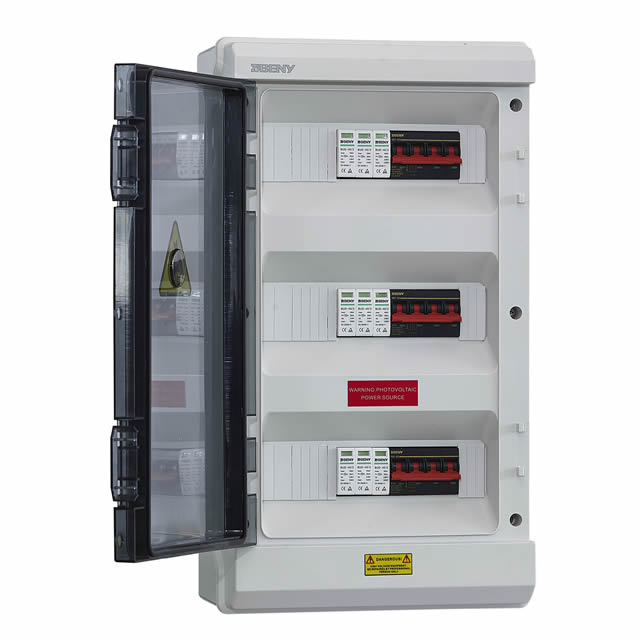

1000V DC combiner box BHS-6-3
- 1000V DC Combiner
- Download Pdf
- +86-577-57177008
- [email protected]
- +86-577-57177007
- timwu9111
IP65 DC string box is designed for 6 string PV system.
For surge protection and current protection at solar DC side.
DC Breaker
*UL489B PV standard
*IEC60947-2
*Overload,short circuit Protection
*Non Polarity
*Anti re-flux protection
DC SPD
*New IEC 61643, UL1449
*Designed for solar PV protection
*Higher capacity In 20KA ( IEC, UL )
*Response time <25ns
|
Specification |
|
|
Model Number |
BHS-6/3 |
|
Input |
6 strings |
|
Output |
3 strings |
|
Max Voltage |
1000V |
|
Rated Current of DC Breaker |
40A/40A/40A |
|
Max Current Output |
40A/40A/40A |
|
|
|
|
Enclosure |
|
|
Material |
Poly carbonate/ABS |
|
Degree of Protection |
IP65 |
|
Impacts |
IK10 |
|
Dimensions |
L313*W553*H149mm |
|
Input Cable Glands |
PG09, 2.5-16 |
|
Output Cable Gland |
PG21, 2.5-16 |
|
|
|
|
Environment |
|
|
Operating temperature |
-25℃- +60℃ |
