DC Combiner BHS-4-2 1000V

1000V DC combiner box for solar PV systems

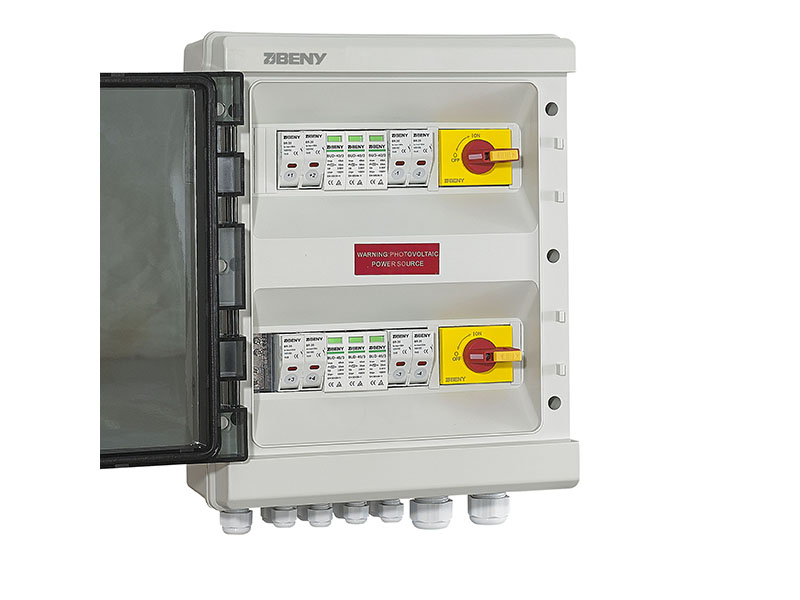

BHS-4/2 DC combiner box at 1000V voltage installed between solar panels and solar inverter.
For protect the solar DC circuit from over-current and over-voltage damage, longer the solar system working life and improve the system safety.

Equipped with the most reliable DC components bring maximum protection.
Features:

* 1000V
* 4 strings input
* 2 strings output
* TUV certificate
* DC Switch up to 1000V 32A

Enclosure: BX-26
* IP65 protect degree for outdoor and indoor
* UV resistance, flame retardant PC material
* Dimension 292*370*132mm

Type 2 DC Surge Arrester: BUD-40/3
* Over-voltage protection
* 1000V 40KA
* IEC61643 / EN50539
* Recommend by top inverter brands
https://www.solaredge.com/sites/default/files/lightning_surge_protection.pdf

DC Fuse: BR-30
* Over-current protection
* LED indicator
* Finger safe touch
* 10x38mm LITTEL 1000V 15A
