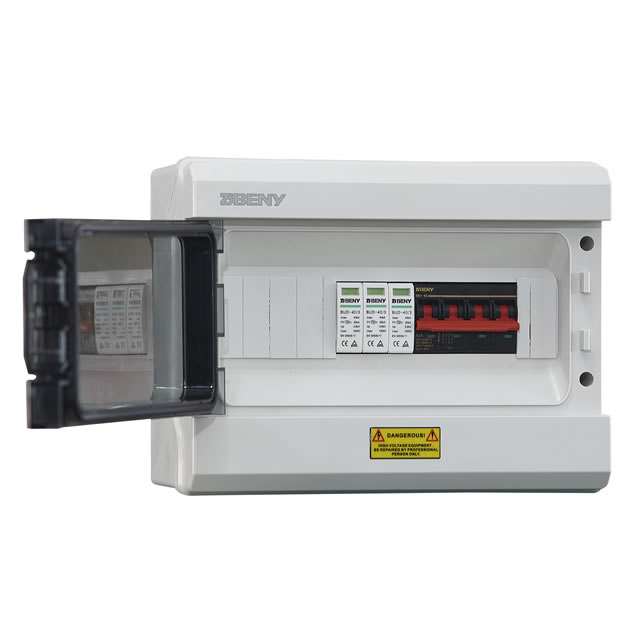

IP65 DC string box is designed for 1 string PV system.
For surge protection and over-load protection at solar DC side.
DC Breaker
*UL489B design, IEC60947-2 PV standard
* Over-load, short circuit Protection
*Non Polarity for easier wiring
DC SPD
*New IEC 61643, UL1449
*Designed for solar PV protection
*Higher capacity In 20KA ( IEC, UL )
*Response time <25ns
|
Specification |
|
|
|
Model Number |
BHS-1/1 |
|
|
Input |
1 string |
|
|
Output |
1 string |
|
|
Max Voltage |
600V |
1000V |
|
Rated Current of DC Breaker |
15A |
15A |
|
Max Current Output |
63A |
40A |
|
|
||
|
Enclosure |
|
|
|
Material |
Polycarbonate/ABS |
|
|
Degree of Protection |
IP65 |
|
|
Impacts |
IK10 |
|
|
Dimensions |
BX-13: L290*W220*H120mm |
|
|
Input Cable Glands |
PG09, 2.5-16 |
|
|
Output Cable Gland |
PG21, 2.5-16 |
|
|
|
||
|
Environment |
|
|
|
Operating temperature |
-25℃- +60℃ |
|
