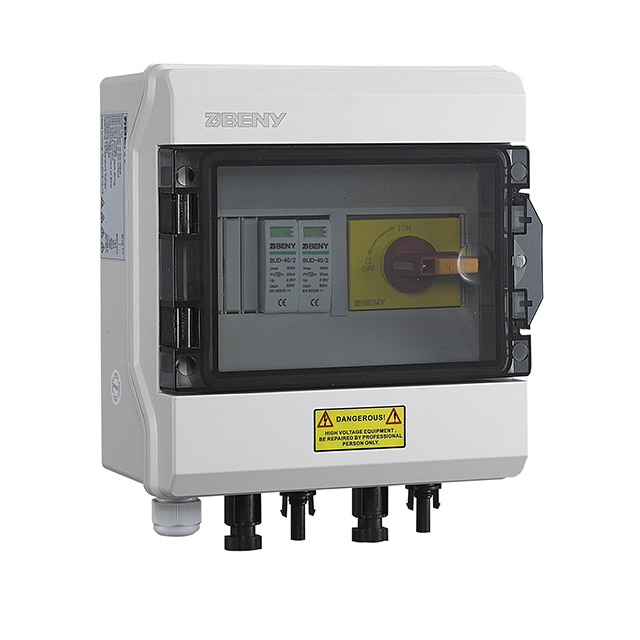

Solar DC box build-in premium solar DC components for maximum protection
BHS-1/1M 600V solar box is equipped with a true solar DC disconnect switch,
A 600V type 2 DC surge arrester for over-voltage protection.
All the true and reliable DC components are pre-assembled in a durable PC enclosure.
Pre-wired MC4 connectors on input and output for option.
Features:
* 600VDC
* 1 string input
* 1 string output
Enclosure: BX-08
* IP65 protect degree for outdoor and indoor
* UV resistance, flame retardant PC material
Model |
BHS-1/1M 600V |
Certificate |
TUV |
Standard |
IEC62109-1, IEC61439 |
Warranty |
5 Years for any quality problems |
Number of input strings |
1 |
Number of output strings |
1 |
Protection Degree |
IP65 (polycarbonate) |
Dimension |
210*194*120mm |
