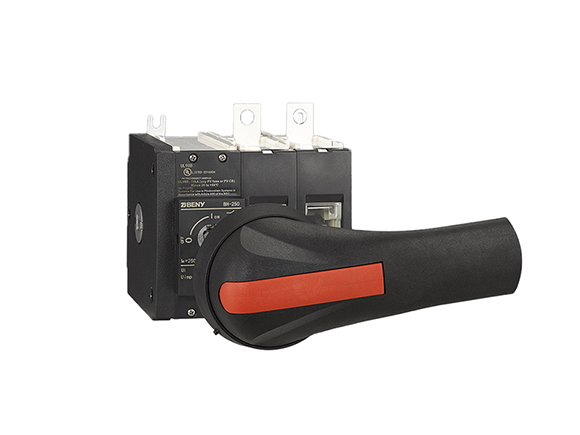

Solar DC switch disconnect up to 1500V 250A UL98B listed
BH-250-2P switch can hold one DC string at 1500V, current up to 250A.
For solar inverter, combiner box and BESS application, the compact switch body brings cost-efficiency solutions.
Features
UL98B listed DC switch
2P 1500V 80A-250A
|
Model |
BH-250-2P |
|
Poles |
2P |
|
Standard |
UL98B |
|
Rated Current |
250A |
|
Rated Operational Voltage (Ue) |
1500V |
|
Mechanical Cycle |
400 |
|
Electrical Cycle |
400 |
|
Protection Degree |
IP20 switch body, IP66/X4 for enclosure |
|
Polarity |
No Polarity |
|
Certificate |
UL |
