DC Disconnect Switch BYSS 1500V 13A

1500V DCdisconnect switch UL508i Listed

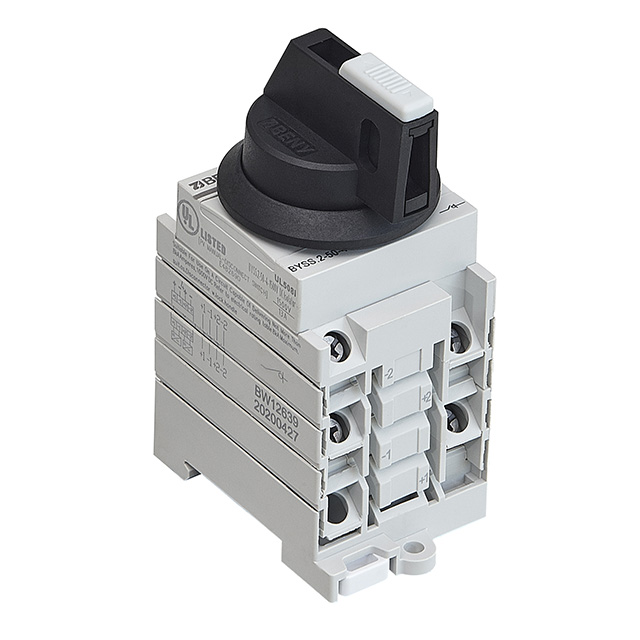

The BYSS.1-50/T (panel mounting) and BYSS.2-50 (din rail mounting) 1500VDC switches are developed for solar PV high power voltage.

Compact body design is for solar inverter DC side, solar combiner box and battery energy storage systems application.

Patented arc extinguishing chamber ensure safety and longer working life.

1500VDC 13A for eachconductor.

Features

*Non-polar DC switch

*UL508i listed

*1500V at 13A

*Lockable handle

*Patented arc extinguishing instruction for arc interruption in 3ms.
