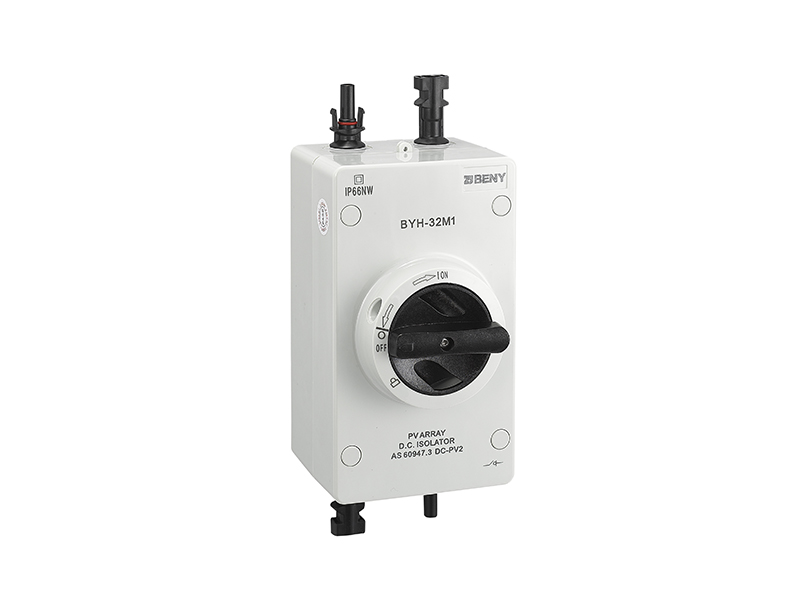

DC Isolator BYH-32M1 IP66 1000V 32A with MC4
- DC Isolator Switch up to 1000V IECSAA
- Download Pdf
- +86-577-57177008
- [email protected]
- +86-577-57177007
- timwu9111
The first DC isolator fully compliant with AS 60947.3:2018 DC-PV2
In Australia and New Zealand DC isolating switches must have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018 DC-PV2. And a breathing valve shall be attached on the DC isolator.
BYH-32M1 solar DC isolator up to 1000V is designed according to IEC60947-3 DC-21B / AS60947.3:2018 DC-PV2 standard.
The first DC isolator compliant with AS 60947 requirements, and can be used in worldwide solar DC systems.
Pre-wired DC isolator with MC4 connectors
The DC isolator switch BYH-32M1 is wired with MC4 for faster and safer installation.
Pre-wired MC4 in factory avoid the loose wiring or failure installation.
Specification:
* 1000Vdc 32A
* IP66 for any positions mounting
* UV resistance and flame retardant material
* 3ms arc suppression
* AS 60947.3:2018 DC-PV2, IEC 60947.3
* Breather valve
* Pre-wired MC4 connectors
* Lockable at off position
