The BFS-21 is designed and developed as the most reliable module level rapid shutdown device for solar building fire safety and meeting the NEC requirements.
Operates SINGLE standard PV module (>=40V) or TWO modules (<40V).

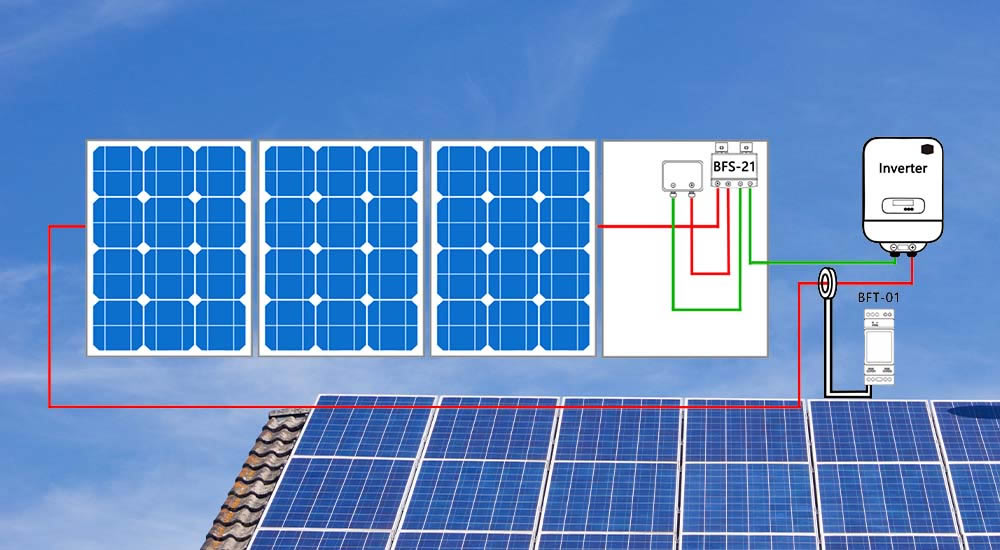

The BFS-21 complies with NEC 2017&2020 690.12 rapid shutdown requirements when work with the SunSpec signal transmitter BFT-01 or an inverter with built-in transmitter, in non-interference with the inverter AFCI.
BFS-21 FEATURES
Shutdown panel to 0V at microsecond
Plug and Play Easy Installation
PLC control signaling
PVRSS with multiple inverters
Over temperature protection Automatic shutdown
Patents pending
25 years warranty
BFS-21 Specifications
|
BFS-21 Specifications |
|
|
Input |
|
|
Range of Operating Voltage |
18V-90V input |
|
Max Operating Current |
18A |
|
Max Input Power |
1620W total |
|
Communication |
PLC (DC Power Line) SunSpec certificate Microsecond response RSD |
|
Mechanical |
|
|
UL 50 E Enclosure Type Rating |
NEMA 4X |
|
Connectors |
MC4 (standard) Jinko connectors for option |
|
Input cable length |
180mm |
|
Output cable length |
1800mm |
|
Weight |
600g |
|
Environmental |
|
|
Operating Temperature |
-30°C-- +80°C
|
|
Ambient Operating Temperature |
-30°C-- +55°C
|
|
Over Temperature Protection |
85°C |
|
Certificate and Standards |
UL1741 PVRSS and PVRSE listed NEC 2014/2017/2020 690.12 |
