The BHS-1/1 DC string box, for 1 string panels protection. With 1 input from panels 1 string output to the inverter. Finger safe touch fuse holder 15A fuse for positive and negative. With type 2 SPD over voltage protection. Total 1000V 32A DC isolator switch to output to 1 MPPT inverter.
The BHS-1/1 DC string box, for 1 string panels protection. With 1 input from panels 1 string output to the inverter. Finger safe touch fuse holder 15A fuse for positive and negative. With type 2 SPD over voltage protection. Total 1000V 32A DC isolator switch to output to 1 MPPT inverter.
With TUV certificate and supply customized solutions for different targets.

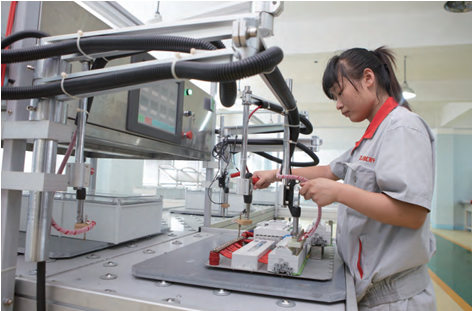

Each string box and combiner box will be tested before delivery.
|
DC String Box |
|
|
Model NO. |
BHS-1/1 |
|
Certificate |
TUV CE |
|
Input |
1 string |
|
Output |
1 string |
|
Max Voltage |
1000V |
|
Enclosure |
|
|
Material |
Polycarbonate / ABS |
|
Degree of Protection |
IP65 |
|
Dimension (W*H*D) |
292*220*120mm 13ways |
|
Spec |
UV resistance and Flame retardant |
|
DC switch |
|
|
Rated Voltage |
1200V |
|
Rated Current |
32A |
|
DC SPD |
|
|
Max Operating Voltage |
1000V |
|
Category |
Type 2 |
|
Max Discharge Current |
40KA |
|
DC Fuse Holder |
|
|
Rated Voltage |
1000V |
|
Fuse link |
15A 10*38mm |
|
Finger safe touch |
YES |
|
LED indicator |
YES |
